 Changing Table Orientation (Vertical and Horizontal)



The Anatomage table can transition between a horizonal and vertical orientation depending on the specific use case. This article provides a short tutorial on how to switch between the two.



 Horizontal to Vertical



Prior to making any changes, ensure the wheels located on the left side are locked to prevent the table from moving while in transition.

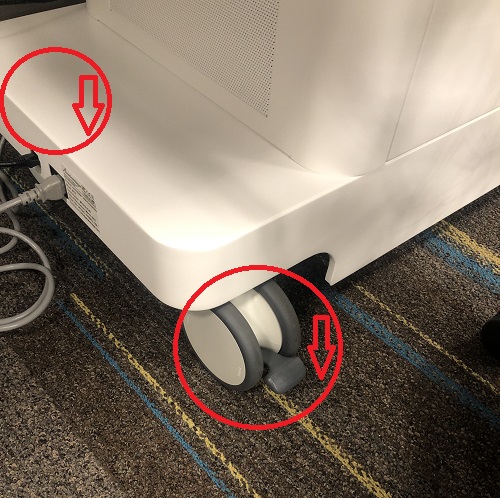

Press down the tabs on BOTH wheels.

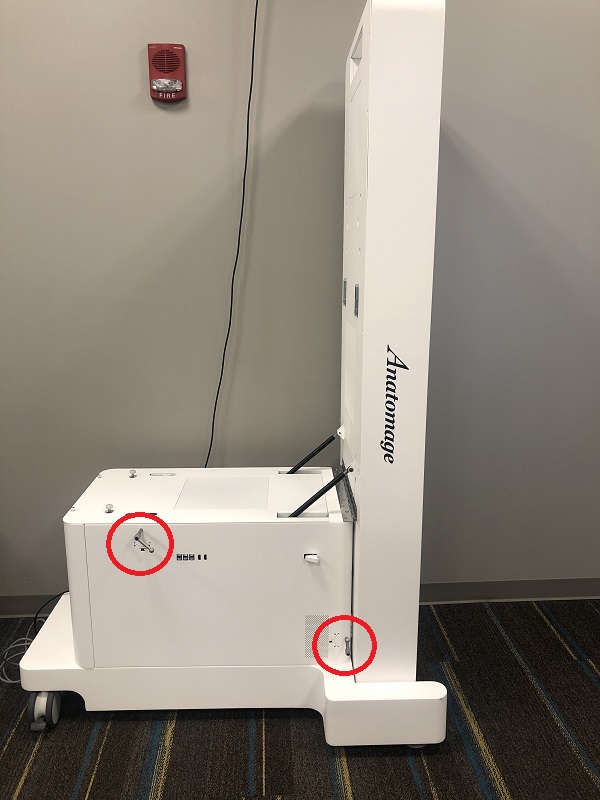

Locate the two locking mechanisms that keep the screens in place. The top keeps it in the horizonal, the bottom right in the vertical.

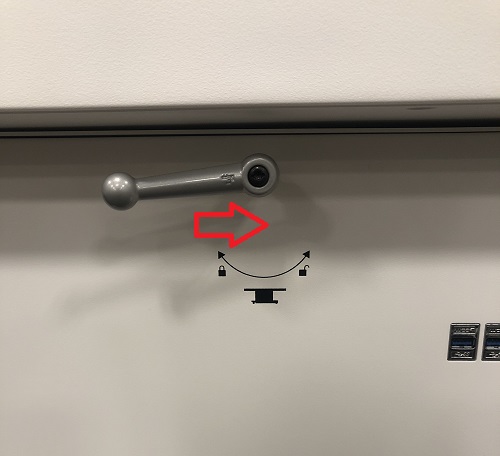

Unlock the horizontal lock by pushing the lever from the locked to unlocked position. This frees the monitor panel and allows it be lifted.

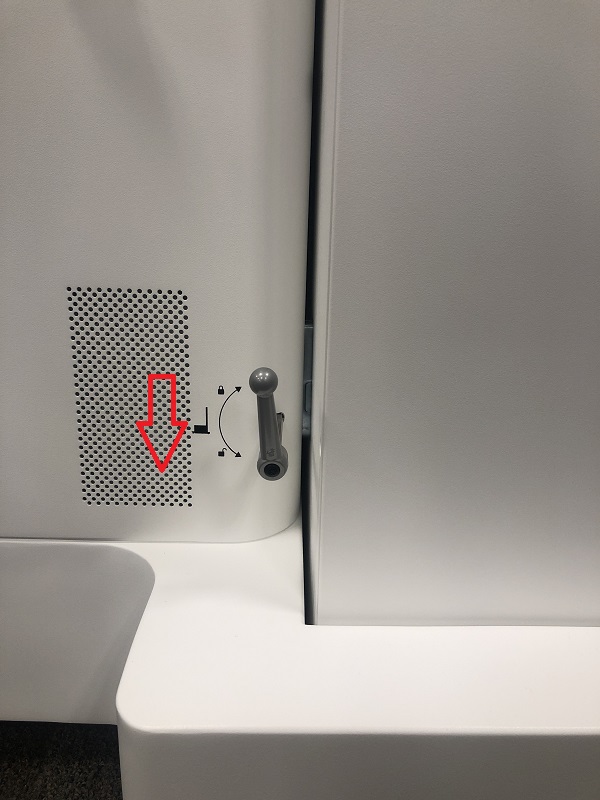

Prior to lifting the monitor panel ensure the vertical locking lever on the right bottom side is set to unlock.

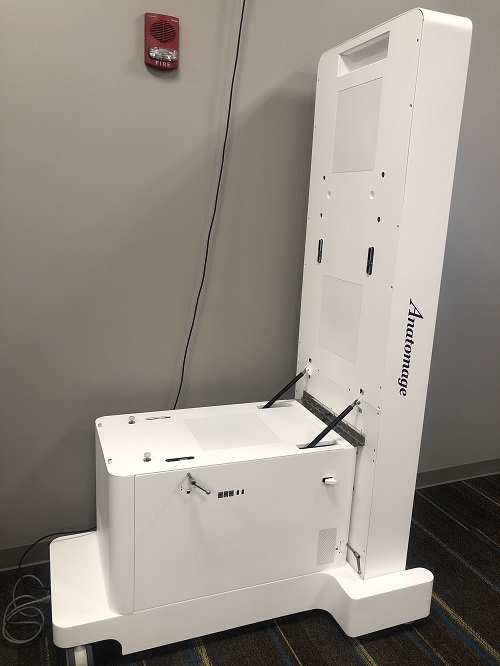

Slowly lift the panel from the left side to transition to the vertical orientation. Be careful as it is heavy, especially when almost in the vertical position.

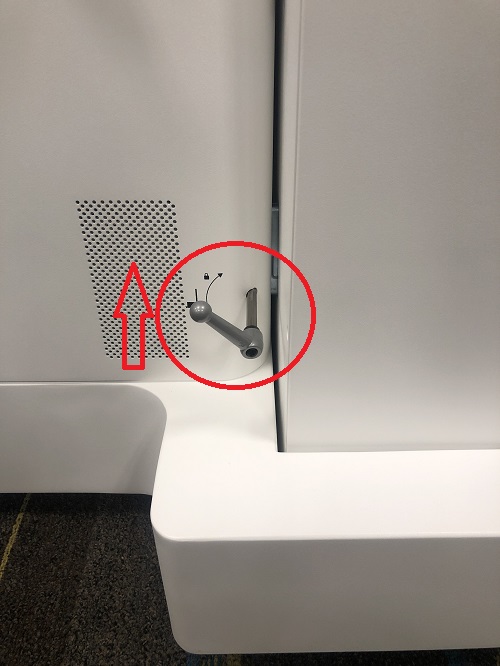

Once vertical lock it into place by pushing the vertical lock upwards. This prevents it from shifting back accidentally.


Vertical to Horizonal



Prior to making any changes, ensure the wheels located on the left side are locked to prevent the table from moving while in transition.

Press down the tabs on BOTH wheels.

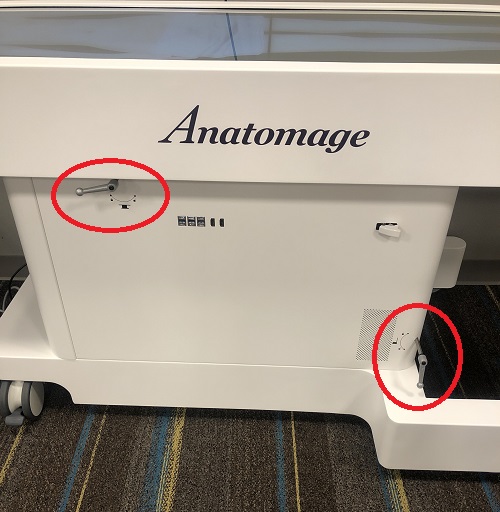

Locate both panel locking levers.
Release the vertical lock by pushing it down towards unlock.
Slowly push the monitor panel to the horizonal position. Be careful as it is very heavy, especially when almost completely horizonal.

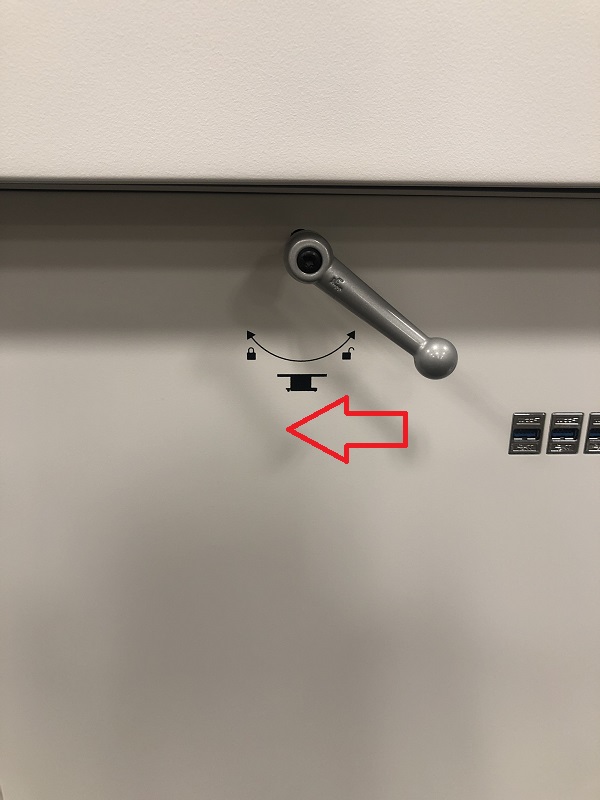

When the panel is in the horizonal position lock it in place by pushing the locking lever to the left.
